EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1

產品型號: 110-MA-1001-K1

查看規格表
下載說明書

EVGA 110-MA-1001-K1  Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1

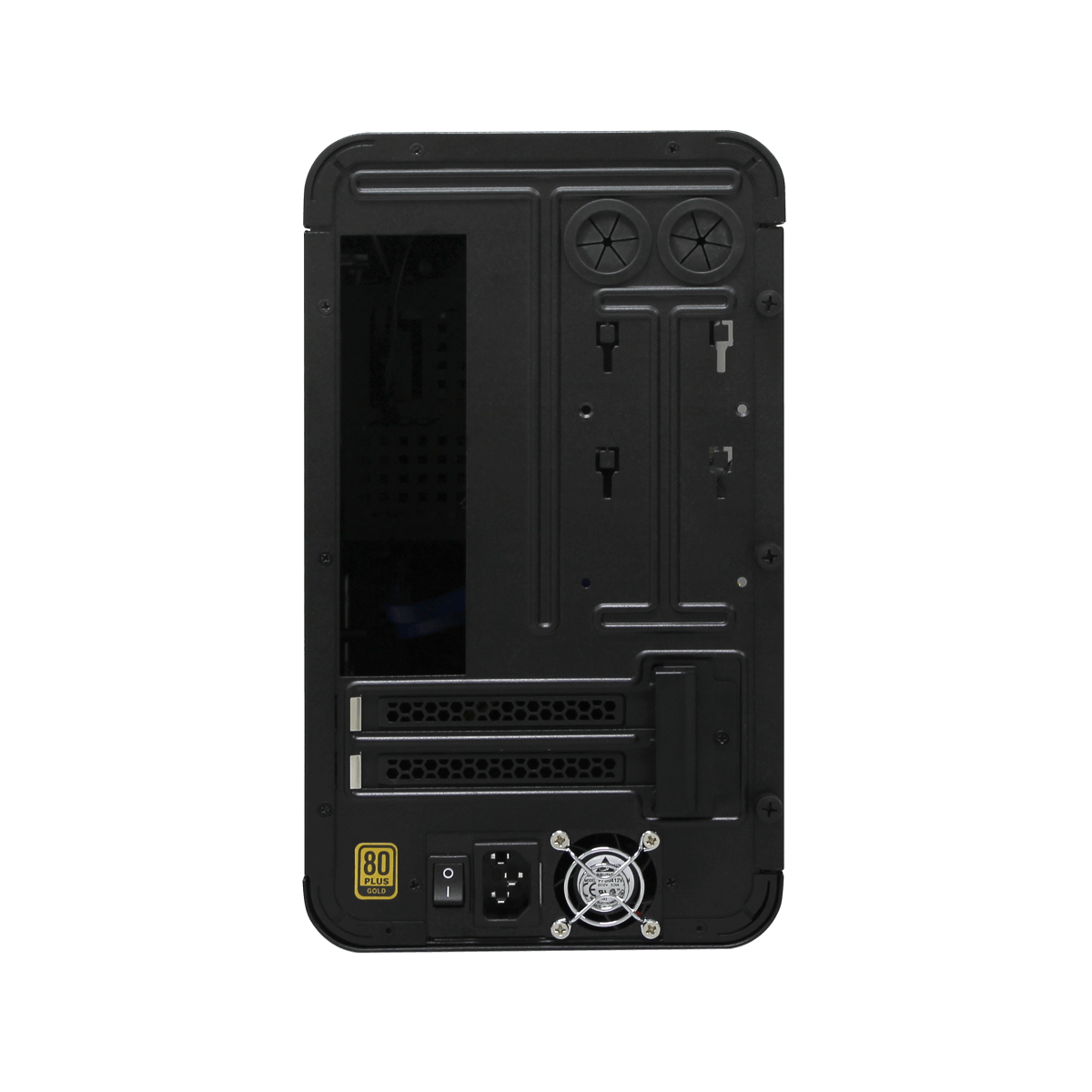

  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 1
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 2
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 3
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 4
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 5
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 6
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 7
  • EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1) - Image 8

*照片上顯示的配件如有變更不另行通知。



Now you are able to build a mini ITX system with enthusiast performance! The EVGA Hadron mini ITX chassis was designed to not make any compromises. At a mere 305mm height and 169mm width, the EVGA Hadron chassis is extremely small, but capable of holding today's latest hardware.

With an included 500W Gold rated power supply, support for a full sized graphics card, sleek looks and enthusiast features, the EVGA Hadron mini ITX chassis packs a serious punch.

Learn more here.

Click here for graphics card compatibility

Specs

  • SECC Material
  • 2 x 2.5/3.5 Drive Bays
  • Optical Drive Support (not included)
  • 2 x 120mm Fans

Form Factor

  • mITX Form Factor
  • Width: 6.6in – 169mm
  • Height: 12in – 305mm
  • Depth: 12.1in – 308mm
  • Supports Graphics Card 10.5in - 267mm

Power Supply

  • 500W Gold
  • 40A on +12V Rail

I/O

  • 2x USB 3.0 Ports
  • HD Audio In/Out

Product Warranty

  • This product comes with a 3 year warranty. Registration is recommended.

Sleek look, extremely compact size!

At only 12in/305mm height, and 6.6in/169mm width, the EVGA Hadron is one of the smallest chassis available for the enthusiast!

Mini ITX Form Factor

Supports all Mini ITX form factor motherboards.

Integrated 500W Gold Rated Power Supply w/ 40A on +12V Rail

Integrated 500W Gold Rated Power Supply w/ 40A on +12V Rail

Supports most full size enthusiast graphics cards! (Up to 267mm, double slot)

Top to bottom support for today’s latest graphics cards.

2 x 2.5/3.5in Drive Bays

Supports up to two hard drives. Whether you use them for a RAID 0, or storage, the choice is yours! Can support either full size 3.5in drives or smaller 2.5in.

2 x USB 3.0 Ports

Supporting up to 2 devices of the latest USB 3.0 Superspeed protocol.

HD Audio In/Out

Integrated HD Audio out/headphone and Audio In/mic.

2 x 120mm Exhaust Fans

Included large fans have the capability to move air, and operate silently!

3 Year Warranty

Award winning EVGA Support backed by a full 3 Year Warranty!

Awards of the EVGA Hadron Air Mini-ITX Steel Black Chassis with 500W 80Plus Gold Power Supply 110-MA-1001-K1 (110-MA-1001-K1)

KBMOD

2015/06/01

I love it. It is my precious. It’s everything that I love about Mini ITX – tons of power in a tiny platform – all the while looking like a finely polished, high quality piece of equipment.
The Mod Zoo

2014/04/01

It is a very good case, and when you consider that it comes with a decent PSU, it’s pretty good value for money too.
Guru3D

2014/03/01

EVGA's Hadron is a nice first Mini-ITX chassis release, it offers a massive amount of features for what is the smallest form factor. It is tiny and cute and if you do things right, it'll be grand in performance. Definitely recommended.
TweakTown

2013/12/01

This chassis is part exclusivity, part ingenious, part stylish, and yet the whole time, the components are kept cool inside with little more than 33 dB of noise coming from it.
TechPowerUp

2013/12/01

It is an awesome chassis with incredible potential for tiny but powerful gaming systems that can really kick some serious behind…
Bit-tech

2013/12/01

If you want the smallest case possible without compromising on performance hardware the EVGA Hadron Air is in a league of its own.
PC Perspective

2013/12/01

EVGA has included a power supply with the Hadron Air; a 500 watt 80+ Gold rated 1U unit that makes the biggest leap in SFF designs to date: it's QUIET!!
Overclockers.com

2013/11/01

Overall, the Hadron Air allows one to pack quite a punch in its small package while looking good doing it.
HEXUS

2013/11/01

Well-built and styled to look good on any desk, the Hadron Air is, in our estimation, a glimpse at the next generation of gaming PC.
